ELM98xxxxCCMOS Voltage regulator

ELM98xxxxC is CMOS voltage regulator, which mainly consists of reference voltage source, error amplifier, short-protected control transistor, thermal protection circuit, output voltage setting resistors. The standard output voltages are 1.8V, 3.3V, 5.0V, 12V; these output voltages are fixed internally with high accuracy. ELM98 series can also be made as semi-custom IC within the range of 1.2V to 15.0V by 0.1V step.

Output voltage range1.2V to 15.0V (by 0.1V)
Input voltage range2.2V to 18.0V
Low current consumptionTyp.4.0µA(ELM98033xC)
Input stabilityTyp.0.05%/V(Iout=50mA)
Load stabilityTyp.5mV(1mA<=Iout<=50mA)
Accuracy of output voltage±2.0%
Output voltage temperature coefficient±100ppm/°C
Short current limiterTyp.30mA(Vout=0V)
Thermal shutdown protectionTyp.160°C
Battery operated devices
Digital cameras
Video recorders
Reference voltage source

Absolute Maximum Ratings

Input voltageVin20V
Output voltageVoutVss-0.3 to Vin+0.3V
Output currentIout200(*1)mA
Power dissipation
PdSOT-89 (500(*2), 1000(*3))
SOT-25 (250(*2), 600(*3))
SOT-23 (250(*2), 500(*3))
Operating temperatureTop-40 to +85°C
Storage temperatureTstg-55 to +125°C
  • * 1. Output current must not exceed power dissipation specified in maximum absolute ratings.
    * 2. No mounted, IC alone.
    * 3. Mounted on glass epoxy board (FR-4). (76.2mm×114.3mm×1.6mm : based on EIJ/JEDEC standard size), 2layers, Cu thickness 35μm, Cu area : top side 20%, back side 100%.

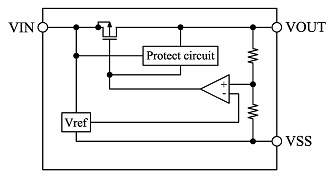

Block diagram
