ELM88xxxxACMOS 300mA LDO Voltage regulator

ELM88xxxxA is high current and low dropout(LOD) CMOS fixed voltage regulator. There are 2 types of CE selection for ELM88 series: non-chip enable function and “H”active. Thermal shutdown protective function and short circuit current limiter are included in the IC. The standard output voltages are 1.2V, 1.8.V, 2.5V, 3.0V, 3.3V, 5.0V; ELM88 series can also be designed as semi-customed IC within the range of 0.8V to 5.0V by 0.1V step.

Output voltage range0.8V to 5.0V(by 0.1V)
Output currentMin.300mA
Stand by current consumptionTyp.0.1µA
Input stabilityTyp.0.02%/V(Iout=40mA)
Load stabilityTyp.5mV(1mA<=Iout<=100mA)
Accuracy of output voltage±2.0%(Vout>1.5V), ±30mV(Vout<=1.5V)
Input/Output voltage differentialTyp.350mV(Vout=3.0V, Iout=300mA)
Short circuit current limiterTyp.40mA(Vout=0V)
Thermal shutdown protectionTyp.165°C
Chip enable pin"H"active(ELM88xx3xA)
Package SOT-89, SOT-89-5
SOT-23, SOT-25
Battery operated devices
Camera and Video recorders
Reference voltage source
Portable electronics

Absolute Maximum Ratings

Input voltageVinVss-0.3 to 7.0V
CE Input voltageVceVss-0.3 to Vin+0.3V
Output voltageVoutVss-0.3 to Vin+0.3V
Output currentIout600mA
Power dissipation
PdSOT-89 (500(*1), 1000(*2))
SOT-89-5 (500(*1), 1000(*2))
SOT-23 (250(*1), 500(*2))
SOT-25 (250(*1), 600(*2))
SC-70-5 (150(*1), 400(*2))
Operating temperatureTop-40 to +85°C
Storage temperatureTstg-55 to +125°C
  • * 1. No mounted, IC alone.
    * 2. When mounted on glass epoxy 2-layers PCB (EIJ/JEDEC standard size: 76.2 mm×114.3 mm×1.6 mm), Cu thickness 35 μm, copper foil area ratio 20% on the front side, back side 100% .

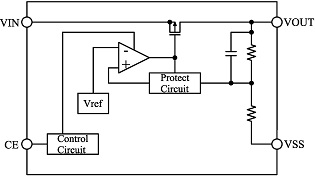

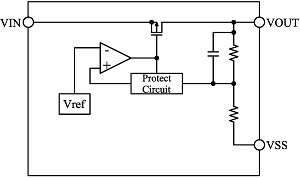

Block diagram
