ELM85xxxxACMOS 600mA/800mA LDO voltage regulator

ELM85xxxxA is CMOS voltage regulator which is characterized with high current and low dropout (55mV at Iout=100mA). There are 2 types of CE selection of ELM85 series: non-chip enable function and “H” active. The standard output voltages are 3.0V, 3.3V. ELM85 series can also be made as semi-custom IC within the range of 1.2V to 4.0V by 0.1V step. This series also includes short circuit current limiter and thermal shutdown circuit. Ceramic capacitors with low ESR can be used as input and output ones.

Output voltage
range
1.2V to 4.0V(by 0.1V)
Output
current
600mA(Vout<3.0V)
800mA(Vout>=3.0V)
Current
consumption
Typ.40µA
Input stabilityTyp.0.02%/V
Load stabilityTyp.20mV(1mA<=Iout<=300mA)
Accuracy of
output voltage
±2.0%(Vout>1.5V)
±30mV(Vout≤1.5V)
Input/Output
voltage differential
Typ.55mV
(Vout=3.0V, Iout=100mA)
Short circuit
current limiter
Typ.70mA(Vout=0V)
Package SOT-89
SOT-89-5
SON8-3x3
SOT-25
SOT-23
DatasheetELM85series
Application
Battery operated devices
Portable AV equipments

Absolute Maximum Ratings

ParameterSymbolLimitUnit
Input voltageVinVss-0.3 to 7.0V
Output voltageVoutVss-0.3 to Vin+0.3V
Output currentIout1000mA
Power dissipationbr (Ta=25°C)PdSON8-3x3 (500(*1), 1000(*2))
SOT-89 (500(*1), 1000(*2))
SOT-89-5 (500(*1), 1000(*2))
SOT-23 (250(*1), 500(*2))
SOT-25 (250(*1), 600(*2))
mW
Operating temperatureTop-40 to +85°C
Storage temperatureTstg-55 to +125°C
  • * 1. No mounted, IC alone.
    * 2. When mounted on glass epoxy 2-layers PCB (EIJ/JEDEC standard size: 76.2 mm×114.3 mm×1.6 mm), Cu thickness 35 μm, copper foil area ratio 20% on the front side, back side 100% .

Block diagram

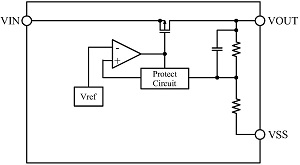

ELM85xx1xA

block-diagram

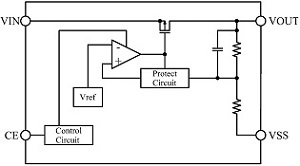

ELM85xx3xA

block-diagram
