ELM87xxxxA 1μA Low power consumption CMOS 300mA V/R
ELM87xxxxA is CMOS voltage regulator which is characterized with low current consumption and low dropout. ELM87 series provides high output current of 300mA while the consumption current is comparatively low, which is Typ.1.0μA. There are 2 types of CE selection for ELM87 series: non-chip enable function and “H” active. The standard output voltages are 1.8V, 2.5V, 3.0V, 3.3V, 5.0V; ELM87 series can also be designed as a semi-custom IC within the range of 1.5V to 5.0V by 0.1V step. Thermal shutdown protection and short-circuit current limiter are included in the IC. Ceramic condenser with low ESR can be used as input and output ones.
| Output voltage range | 1.5V to 5.0V(by 0.1V) |
|---|---|
| Maximum output current | 200mA(1.5V to 3.9V), 300mA(4.0V to 5.0V) |
| Current consumption | Typ.1µA |
| Standby current consumption | Typ.0.1µA |
| Input stability | Typ.0.05%/V |
| Load stability | Typ.10mV(1mA<=Iout<=100mA) |
| Accuracy of output voltage | ±2.0% |
| Input/Output voltage differential | Typ.125mV(Vout=3.0V, Iout=100mA) |
| Short circuit current limiter | Typ.50mA(Vout=0V) |
| Thermal shutdown protection | Typ.160°C |
| Chip enable pin | “H” active (ELM87xx3xA) |
| Package |
SOT-89,
SOT-89-5 SOT-23, SOT-25 SC-70-5(SOT-353) |
| Datasheet | ELM87series |
- Application
- Cell phones
- Battery operated devices
- Wireless devices
- Portable AV equipments
Absolute Maximum Ratings
| Parameter | Symbol | Limit | Unit |
|---|---|---|---|
| Input voltage | Vin | Vss-0.3 to 7.0 | V |
| CE Input voltage | Vce | Vss-0.3 to Vin+0.3 | V |
| Output voltage | Vout | Vss-0.3 to Vin+0.3 | V |
| Output current | Iout | 600 | mA |
| Power dissipation (Ta=25°C) | Pd | SOT-89 (500(*1), 1000(*2)) SOT-89-5 (500(*1), 1000(*2)) SOT-23 (250(*1), 500(*2)) SOT-25 (250(*1), 600(*2)) SC-70-5 (150(*1), 400(*2)) | mW |
| Operating temperature | Top | -40 to +85 | °C |
| Storage temperature | Tstg | -55 to +125 | °C |
|
Block diagram

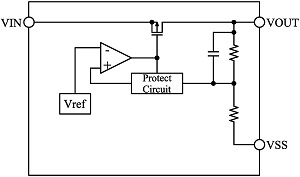

ELM87xxxA

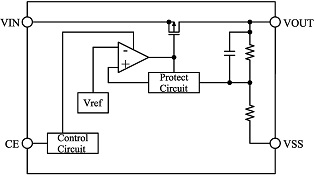

ELM87xx3xA
